The evolution of the 4×4 Armoured Vehicle

Sponsored

From an urgent operational requirement driven by the tactics used in asymmetric warfare, the 4×4 armoured vehicle has evolved to become a key enabler in modern high-intensity conflict. It offers a unique blend of mobility, lethality, survivability, and affordability that NATO forces should seek to exploit, Brigadier (Ret’d) Recep Ozdemir argues in this article for Nurol Makina.

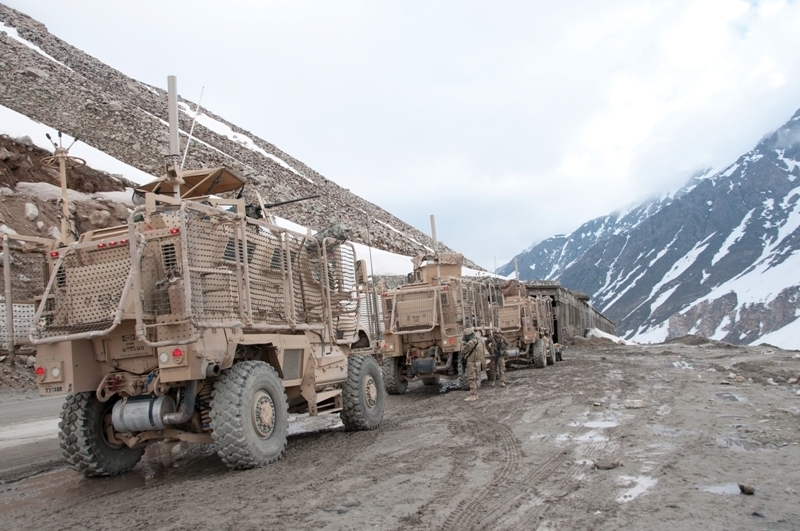

Introduction: The MRAP Legacy and the Dawn of a New Era

The emergence of large-scale asymmetric warfare in the early 21st century introduced a pervasive and lethal threat that fundamentally altered the calculus of ground operations: the mass employment of Improvised Explosive Devices (IEDs). Conventional light tactical vehicles, designed for a different era of warfare and often comprising little more than militarized utility trucks, proved catastrophically vulnerable. This asymmetry, where a low-cost, crudely manufactured device could defeat a multi-million-dollar military asset and its highly trained crew, created a crisis of confidence and inflicted a severe psychological toll on troops, slowing operational tempo to a crawl. The urgent operational requirement was clear: a new class of vehicle was needed, one focused single-mindedly on crew survivability. The solution was found not in new invention, but in revisiting proven designs from earlier counter-insurgency conflicts, leading to the rapid development of the Mine-Resistant Ambush Protected (MRAP) vehicle.

The core concept of the MRAP was an engineering masterclass in blast physics. It centred on a V-shaped monocoque hull that deflects the explosive energy from an underbody detonation away from the crew compartment, combined with increased ground clearance and breakaway components like wheels and axles designed to absorb and dissipate the force. The MRAP’s development and fielding were characterized by unprecedented speed, prioritizing the rapid delivery of a workable solution over a lengthy traditional procurement process in order to save lives. This resulted in a spiral development model where the vehicles were continuously improved based on combat data and field feedback. Early versions were quickly enhanced with better blast-resistant seating, shock-mitigating floors, and advanced suspension systems. The undeniable success of these vehicles in drastically reducing casualties ensured that their design principles became a benchmark, fundamentally changing the future of armoured vehicle development by making high-level blast protection a standard, non-negotiable requirement for many new tactical and combat platforms.

4×4 Armoured Vehicles and Modern Battlefield Requirements

The foundational lessons of the MRAP era have served as a critical launchpad for a new generation of 4×4 armoured vehicle. While retaining and enhancing core survivability features, manufacturers have dramatically expanded their capabilities to create true multi-mission combat systems. The singular focus on protection has evolved into a sophisticated balancing act of mobility, firepower, and survivability, often referred to as the ‘iron triangle’. Coupled with advanced fully independent suspension systems and Central Tire Inflation Systems (CTIS), these vehicles possess exceptional on-road speed and off-road agility. More importantly, this enhanced mobility directly impacts crew effectiveness; a smoother ride reduces crew fatigue over long missions, ensuring soldiers arrive at the objective more alert and combat-ready.

This leap in mobility is matched by a monumental increase in lethality and situational awareness. Modern 4x4s are now commonly equipped with stabilized remote weapon stations that can mount a formidable array of armaments, from machine guns and automatic grenade launchers to 30mm-class automatic cannons and even large-caliber, low-pressure guns for direct fire support. The integration of anti-tank guided missiles, organic loitering munitions for beyond-line-of-sight strikes, and dedicated air defence systems has given them an offensive and defensive reach once reserved for much heavier platforms. This firepower is guided by sophisticated sensor suites that fuse data from electro-optical, thermal, radar, and acoustic shot-detection systems. This sensor fusion provides the crew with a single, coherent picture of the battlespace, automatically detecting and highlighting threats and giving them dominant awareness, including the critical ability to counter small, agile unmanned aerial vehicles (C-UAV).

These advanced capabilities align perfectly with the core operational and protection requirements outlined in NATO’s Defence and Operational Planning documents and related STANAGs as well as many allied countries’ doctrines, particularly for light and medium units. For Light and Medium Infantry Battalions, which are expected to utilize “protected patrol vehicles” the 4×4 armoured vehicle provides the requisite STANAG-rated protection while delivering the “additional firepower and protection” needed to support both medium and heavy forces. Nowhere is the synergy more apparent than in reconnaissance roles, where modern 4x4s, with their sophisticated sensor suites and low-signature propulsion, are the ideal platform for route and area reconnaissance, information dominance, and combat manoeuvre, making them a direct answer to the stated capability needs of modern reconnaissance units.

The 4×4 Armoured Vehicle, a Force Multiplier

The immense value of the modern 4×4 armoured platform extends far beyond its direct combat applications, making it an indispensable asset in the critical domains of combat support and combat service support and CSS. Its true force-multiplying effect is realized in its capacity to serve as a modular platform for a host of sophisticated mission systems, decentralizing critical capabilities. This versatility is critical, as a persistent challenge on the high-intensity battlefield—a lesson relearned in every major conflict—is ensuring that support elements can keep pace with and survive alongside combat formations. Because a force is only as strong as its logistical tail, a vulnerable supply line can lead to mission failure. The inherent mobility and high level of protection of the 4×4 chassis provide the perfect solution to this dangerous vulnerability gap. This adaptability is showcased in a wide family of specialized variants, including:

• A Command and Control Vehicle (C2V) variant allows a commander to stay mobile and protected near the front, shortening their decision-making cycle (OODA loop) and outpacing the adversary.
• The same base vehicle can be configured to provide organic indirect fire with a 120 mm mortar system
• Or create a protective bubble against aerial threats as a Short-Range Air Defence (SHORAD) platform.
• The Troop-Carrying Vehicle (TCV), which has become essential in Ukraine as Russia targets the logistics routes to the frontline, making heavy platforms a slow and expensive vulnerability.
• Battlefield Ambulance (BFA) for protected casualty evacuation, itself a now perilous task.
• And the Equipment Support Vehicle (ESV) for forward repair and recovery, ensuring the logistical and medical lifeline of the force is as resilient as the frontline units it sustains.

This plug-and-play adaptability for vital systems – from ISTAR to CEMA – confirms that the 4×4 armoured vehicle is not merely a protected patrol vehicle, but a foundational and versatile building block for the entire combined-arms team.

The Smart Choice: A Holistic Advantage Over Heavier Platforms

While it is an accepted reality that larger wheeled and tracked platforms inherently offer superior levels of armour protection and a greater payload capacity, a holistic analysis reveals the compelling advantages of the modern 4×4. Their smaller dimensions and lower weight profile not only make them a more difficult target but also grant them unmatched agility in complex terrain where larger vehicles struggle. This tactical mobility is complemented by superior strategic and operational mobility. Their ease of air transport allows for rapid force projection, while their lower weight enables them to cross infrastructure, like civilian bridges in developing regions that would be impassable for heavier vehicles. This translates into a different form of survivability—one based on avoidance, speed, and tactical flexibility rather than sheer armour mass.

From a strategic and logistical standpoint, the case for the 4×4 becomes even more persuasive. They have a significantly smaller operational footprint. Their lower procurement, lifecycle costs, lead-time, reduced fuel consumption, and simplified maintenance present a highly cost-effective solution. This allows land forces to adopt a proven “high-low mix” strategy. Rather than investing in a single heavy platform, this more effective approach leverages the 4×4 armoured vehicle for the vast majority of reconnaissance, combat support, and rapid intervention roles, while reserving heavier, more specialized counterparts for missions that absolutely demand maximum firepower and protection. This tailored approach not only optimizes scarce resources but also enhances overall operational effectiveness by ensuring the right asset is available for the right task, solidifying the 4×4’s position as an indispensable and intelligent choice for the contemporary battlefield.

The Embodiment of Evolution – Nurol Makina

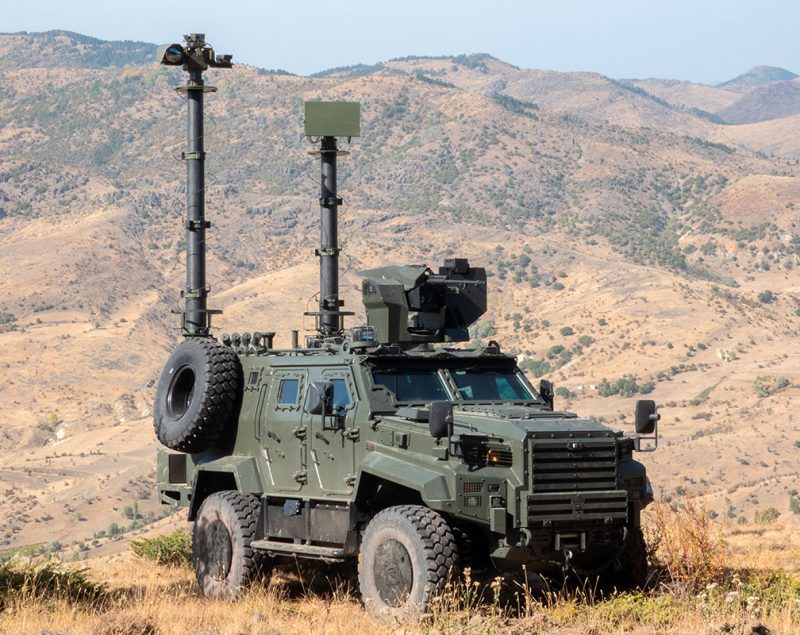

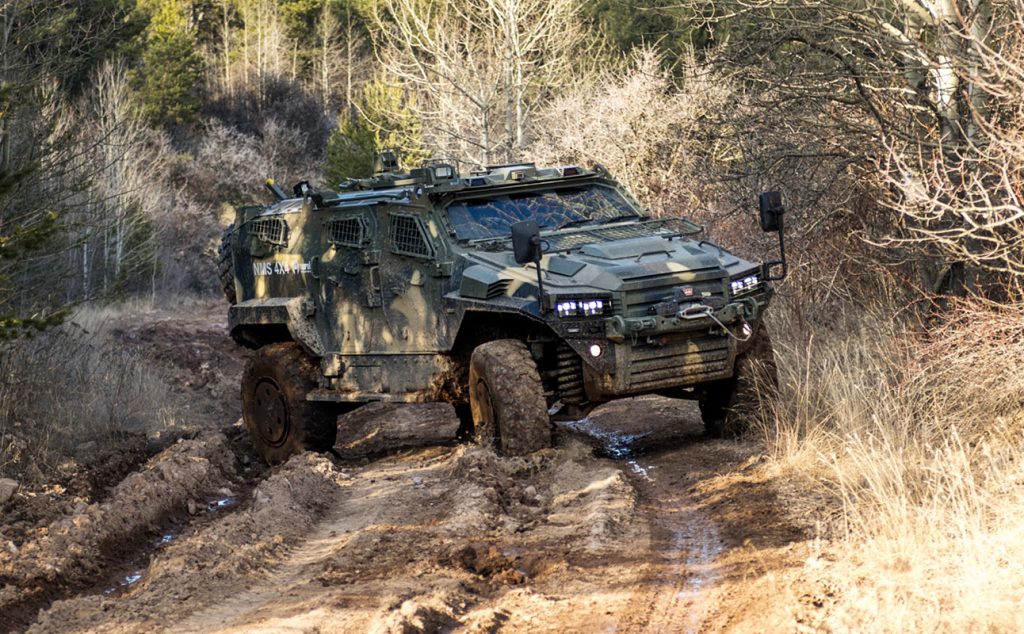

This remarkable evolution from a niche protection vehicle to a dominant, multi-role platform is not merely theoretical; it is embodied by the work of industry leaders like Nurol Makina. The company’s flagship vehicles, such as the Ejder Yalcin 4×4 (Dragon 4×4) and the NMS 4×4, are perfect examples of this new generation, masterfully balancing the iron triangle of protection, mobility, and firepower. Nurol Makina has proven its expertise by developing a family of vehicles that directly answers the global demand for versatile, survivable, and cost-effective platforms. In doing so, it has become an export leader in the high protection and high mobility segment of 4×4 armoured and protected mobility vehicles. In the past seven years, it has succeeded in competitive tenders to deliver over 2,000 vehicles to forces around the globe. Many of which have been deployed operationally.

Through experienced and visionary companies like Nurol Makina, the 4×4 armoured vehicle has not only matured but has rightfully claimed its place as a cornerstone of modern, effective, and sustainable land forces.

Published on 19th June, 2025. About the author: Brigadier (Ret’d) Recep Ozdemir served for over seven years within NATO’s Strategic Command and Force structure and spent more than 25 years in the Turkish Armed Forces. Since 2020, he has been serving as Defence Advisor to the Executive Board of Nurol Holding.
